A Next-Generation Overground STP System with Advanced MBBR + Filtration Technology

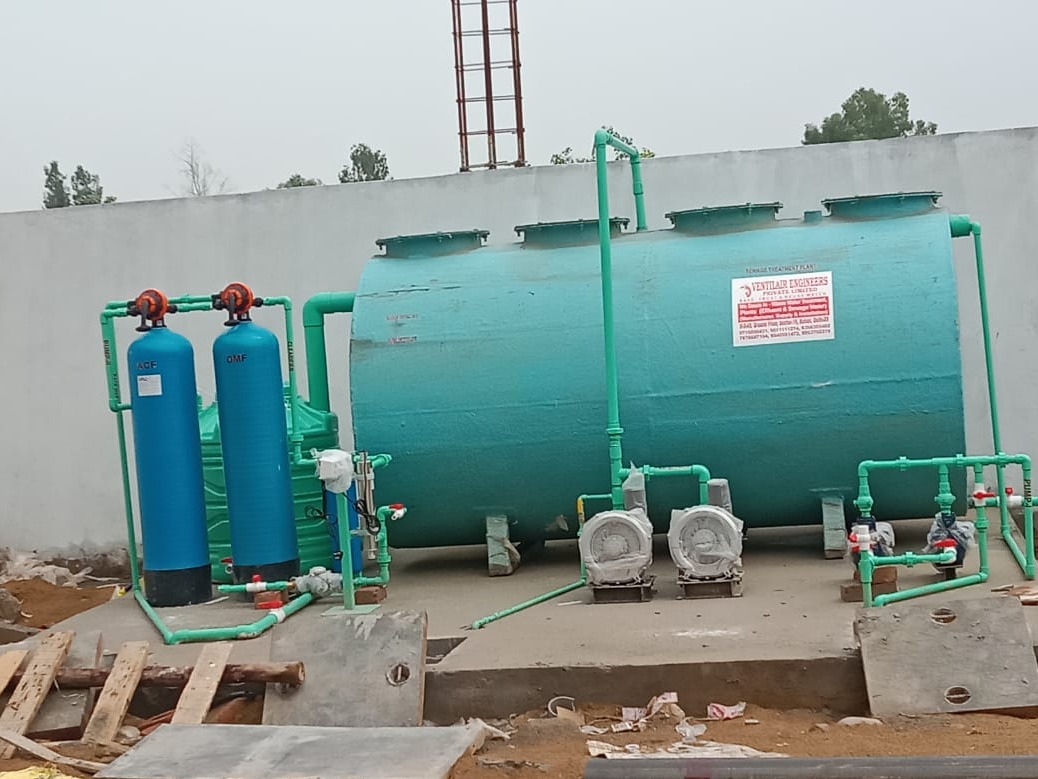

Ventilair Engineers Pvt. Ltd. (VEPL) introduces an innovative and uniquely engineered Plug-and-Play Sewage Treatment Plant (STP) – a Capsule-Type MSFRP (Mild Steel with FRP Coating) system that is superior to traditional FRP capsules. This over-the-ground STP unit comes pre-fabricated, pre-wired, and pre-tested, offering rapid deployment, low maintenance, and high performance for small to mid-sized establishments.
Unlike standard FRP capsules, VEPL’s MSFRP capsule is more robust, corrosion-resistant, and fully integrated with multi-stage treatment that includes settling, MBBR biological treatment, multi-grade filtration (MGF), activated carbon filtration (ACF), and sludge management with filter press. Ultrafiltration (UF) is also available as an on-demand final polishing stage.
Technical Specifications
Feature
Specification
Design Type
Overground Pre-Fabricated MSFRP Capsule-Type
Technology
Settling + MBBR + MGF + ACF + Optional UF
Capacity Range
1 KLD – 100 KLD
Installation
Plug & Play – Ready to install with minimal site prep
Material
MSFRP (Mild Steel + FRP-Lined Body)
Automation
Manual / Semi-Automatic / Fully Automatic
Power Supply
230V / 415V, 1-phase/3-phase as per size
Odor Control
Integrated Activated Carbon Vent System
Sludge Handling
Filter Press or Sludge Drying Bed
Disinfection
UV / Chlorine
Optional Add-ons
Ultrafiltration (UF), IoT Monitoring, Solar Backup, Skid Mounting
Compliance
CPCB / SPCB Standards for Water Reuse
Inlet & Outlet Water Parameters – Stage-Wise Breakdown
Primary Treatment
(Screening → Oil & Grease Trap → Settler Tank)
Parameter
Raw Sewage (Inlet)
After Primary Treatment
BOD
250–400 mg/L
150–200 mg/L
COD
500–700 mg/L
300–450 mg/L
TSS
200–350 mg/L
100–150 mg/L
pH
6.5 – 8.5
6.5 – 8.5
Secondary Treatment (MBBR Technology)
(Biofilm Reactor + Tube Settler)
Parameter
After Primary
After Secondary Treatment
BOD
150–200 mg/L
< 30 mg/L
COD
300–450 mg/L
< 100 mg/L
TSS
100–150 mg/L
< 30 mg/L
Tertiary Treatment
(MGF + ACF + UV/Chlorination)
Parameter
After Secondary
After Tertiary Treatment
BOD
< 30 mg/L
< 10 mg/L
COD
< 100 mg/L
< 30 mg/L
TSS
< 30 mg/L
< 5 mg/L
Odor & Color
Present
Odorless, Colorless
Optional Ultrafiltration (UF) Stage
(Final Polishing for Water Reuse in Flushing, Gardening, Cooling, etc.)
Parameter
After Tertiary
After UF Output
BOD
< 10 mg/L
< 5 mg/L
TSS
< 5 mg/L
< 1 mg/L
Turbidity
< 5 NTU
< 1 NTU
Pathogen Removal
> 99%
> 99.99%
Key Benefits of VEPL Plug & Play Capsule STP
Next-Gen MSFRP Design – Stronger & longer life than standard FRP systems
Over-the-Ground Installation – No excavation required
Rapid Deployment – Commissioned within 2–5 days
Compact & Aesthetic – Ideal for space-constrained sites
Fully Integrated System – Includes sludge, disinfection & filtration modules
Zero Odor & Noise – Quiet and environment-friendly operation
Custom Add-ons – UF, IoT-based monitoring, solar integration, etc.
Designed for 100% Reuse – Complies with all environmental norms
Ideal Applications
Residential Apartments & Villas
Hotels, Resorts & Guest Houses
Hospitals & Clinics
Schools, Colleges & Hostels
Commercial Buildings & Malls
Small Factories & Food Outlets
Farmhouses & Remote Sites
Why Choose VEPL?
Over 1500+ STP/ETP installations across India
Turnkey Expertise – Design → Fabrication → Installation → AMC
Pre-fabricated systems delivered anywhere in India or abroad
CPCB/SPCB approved & environmentally compliant
Customization available for capacity, shape & automation level
